DIRECT ON-LINE CONTROL PANELS

Direct On-Line Control Panels

Direct On-Line Control Panels are used for switching three-phase AC Motors/Submersible pumps up to125HP at 415V AC. A direct on line panel can be used if the high inrush current of the motor does not cause excessive voltage drop in the supply circuit

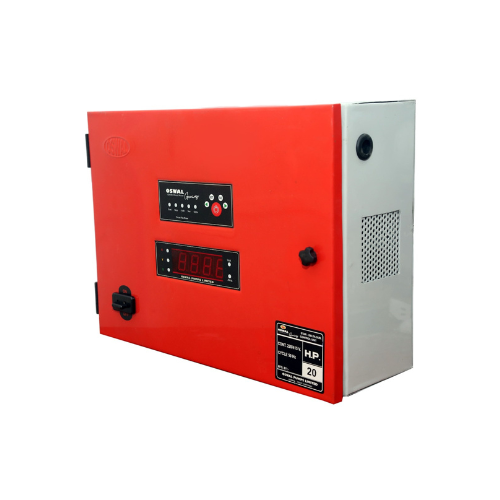

Oswal Genius DOL Control Panel

Sailent Features

• Three Phase voltage display and ampere meter
• Smart Micro Processor Technology
• Protect Motor from running in two phase
• Protect against unbalance voltage
• Over Load (Current) Protection
• Different indications for reverse phase & Voltage fault
• In-build Water Level Controller (WLC)
• One push switch for both ON & OFF

Sr.No.	Model No.	HP/Kw	Current(Amp)	OPERATING VOLTAGE(3 PHASE)
1	OSG-3PH-DOL-3	3/2.24	6	415 V AC +/- 10%, 50 Hz
2	OSG-3PH-DOL-5	5/3.73	10	415 V AC +/- 10%, 50 Hz
3	OSG-3PH-DOL-7	7.5/5.6	15	415 V AC +/- 10%, 50 Hz
4	OSG-3PH-DOL-10	10/7.5	18	415 V AC +/- 10%, 50 Hz
5	OSG-3PH-DOL-12	12.5/9.3	20	415 V AC +/- 10%,50 Hz
6	OSG-3PH-DOL-15	15/11.2	30	415 V AC +/- 10%, 50 Hz
7	OSG-3PH-DOL-20	20/15	40	415 V AC +/- 10%, 50 Hz

Oswal Genius Smart DOL Control Panel

Sailent Features

• Three Phase voltage display and ampere meter
• Smart Micro Processor Technology
• Protect Motor from running in two phase
• Protect against unbalance voltage
• Over Load (Current) Protection
• Different indications for reverse phase & Voltage fault
• In-build Water Level Controller (WLC)
• One push switch for both ON & OFF

Smart Features

• Mobile application control
• ON-OFF by text messages,Calling and Voice
• Get information related to control panel by just sending a text message from your mobile
• Anti-theft Protection*
• Get Precise location co-ordinates of control panel on your mobile**

Sr.No.	Model No.	HP/Kw	Current(Amp)	OPERATING VOLTAGE(3 PHASE)
1	OSG-SMART-3PH-DOL-3	3/2.24	6	415 V AC +/- 10%, 50 Hz
2	OSG-SMART-3PH-DOL-5	5/3.73	10	415 V AC +/- 10%, 50 Hz
3	OSG-SMART-3PH-DOL-7	7.5/5.6	15	415 V AC +/- 10%, 50 Hz
4	OSG-SMART-3PH-DOL-10	10/7.5	18	415 V AC +/- 10%, 50 Hz
5	OSG-SMART-3PH-DOL-12	12.5/9.3	20	415 V AC +/- 10%,50 Hz
6	OSG-SMART-3PH-DOL-15	15/11.2	30	415 V AC +/- 10%, 50 Hz
7	OSG-SMART-3PH-DOL-20	20/15	40	415 V AC +/- 10%, 50 Hz
