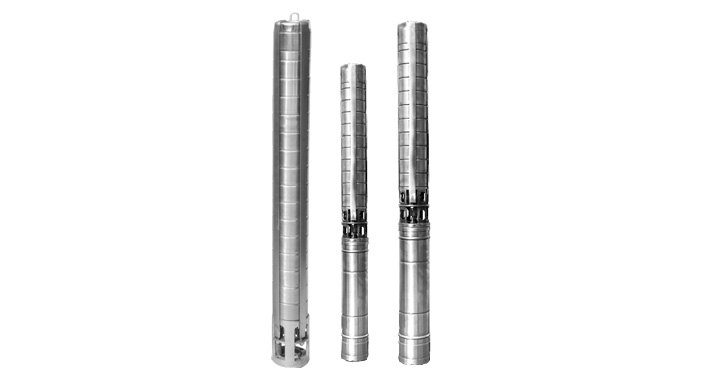

Stainless Steel Submersible Pump set OSP - 8 (4 inch) - 60 Hz

Stainless Steel Submersible Pump set OSP - 8 (4 inch) - 60 Hz

OSWAL submersible pumps & motors are well known for its quality, Reliability & excellence for all type of service purpose. OSWAL submersible pumps & motors are manufactured under supervision of highly qualified technical team witd a stage wise rigid inspection procedure under TQM concepts.

Application of Bore well submersible pumps are in Hospitals, Water circulation systems, Water supply systems of Government, Irrigation, Farms & Drip & sprinkler irrigation, Gardening, Nurseries, Domestic water supply, Multi-storey Building, Industries & Hotels.
Manufactured by stainless steel fabricated technology, pumps are energy efficient and cost efficient, light weight easy for handling, life longevity, corrosion free. Pump shaft using Duplex steel for high wear resistance. Fully fabricated S.S.-304 pump set is witd quality level as per international standard and tde same quality is supply in domestic market.
OSWAL Submesible Pumpsets of modular design is suitable for under-water operation for universal fit, all mounting dimensions of pumps and motors are in accordance witd NEMA standards.
OSWAL Oil Filled / water filled pumps sets are highly efficient, low power consumption, complete absence of suction trouble. Maintenance free operation due to water lubricating bearings, vibration free & noiseless operation and world class design gives higher discharge & high efficiency. Easily repairable & dismountable.
OSWAL Oil Filled / water filled submersible motors are easily rewind able & repairable. Motor filled witd food grade cooling oil. Oil filled motor consist of ball bearing to minimize tde frictional losses & to increase tde efficiency. Oil used as a coolant and work as lubricant in motor so life of motor is increases due to less wear & tear. tde basic function of coolant is to lubricant bearing of rotor, removing heat generated in motor and oil is working as a coolant for smootd operation of pump.
OSWAL BORE WELL SUBMERSIBLE PUMP confirm to IS : 8034.
Mounting dimension of 4" pumps sets are as per NEMA standard

Specifications

  Single Phase Three Phase
Power Range 0.5 - 3 HP / 0.75  - 2.2 KW 0.5 - 10 HP / 0.75 - 7.5 KW
Version 230-220V,  A.C, 60 Hz 380/460 V, A.C, 60 Hz
Speed 3450 rpm. 3450 rpm
Flow Range 80 - 200 lpm / 4.8 - 12 m3/h 80 - 200 lpm / 4.8 - 12 m3/h
Total Head Range 12  - 66 meters 12 - 219 meters
Outlet size in inches / mm 2 inch, 50 mm 2 inch, 50 mm
Degree of Protection IP 68 IP 68
Direction of Rotation CCW - 1Ph & CCW-CW CCW
Maximum Outer Diameter 98 mm 98 mm
Type of Duty S1 (Continuous) S1 (Continuous)
Maximum cooling flow 0.15 m/sec. 0.15 m/sec.
Maximum starts per hour 20  times 20 times
Method of starting Capacitor start and run (CSR) - 1 Ph. DOL  (Direct on line)
Cable Connection Single Phase Star
Thrust Load 4000 N 4000 N
Material of Construction - Pump
Part Name Material SS Pump
Check valve Housing  S.S. 304
Check Valve  S.S. 304
Impeller  S.S. 304
Diffuser  S.S. 304
Pump Shell / Clump (S.S. Pump)  S.S. 304
Pump Shaft  S.S. 431
Suction inter Connector  S.S. 304
Coupling  S.S. 304
Material of Construction - Motor
Part Name Material SS Motor
Upper,  Lower Housing & Motor Base S.S. 304 / CI
Stator Shell S.S. 304 / J-4
Shaft S.S. 410
Thrust Bearing Chromium v/s Carbon
Mechanical Seal Silicon
