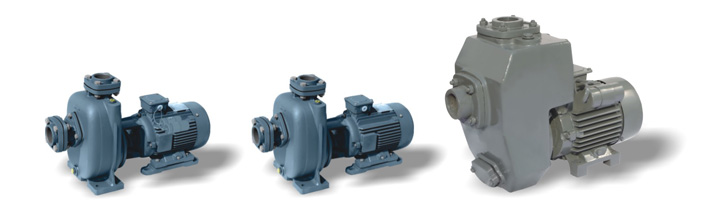

Mud Pumps
Application for crude oil and mud slurry handling in oil fields and cement slurry water, Oswal Pumps Ltd. has introduced improved design of Mud Pump. The inner curvatures of pump casing have been modified in order to attain the minimum load on the impeller with increase in discharge. Available in single and three phase in 1, 1.5, 2 & 3 HP. With head range from 6 meters to 22 meters and discharge flow 70 lpm – 450 lpm. Delivery size options in 40x40 mm, 50x40 mm and 50x50 mm. It comes with mechanical seal, anti-frictional ball bearing and shaft EN-8. Motor frame size 80 F & 100 F. Method of stating DOL. Class of Insulation - B and degree of protection - IP 44 . On demand thermal protection can be can be made available.
| Specification | ||
|---|---|---|
| Power | 1.0, 2.O & 3.0 HP | |
| Versions | 220-240V, 50 Hz, A.C.-1 Phase, 350-440V - 3 Phase, DOL |
|
| Speed | 2880 rpm | |
| Discharge Range | 55 -245 Ipm | |
| Head Range | 12 – 16 mtrs. | |
| Degree of protection | IP 44 | |
| Insulation | Class B | |
| Outlet sizes | 40x40, 50x40 & 50x50 mm | |
| Thermal Protection | Optional In Single Phase | |
| Material of Construction | |
|---|---|
| Pump Casting | Cast Iron |
| Motor Frame | Cast Iron |
| Stator body | Cast Iron |
| Impeller | Cast Iron |
| Shaft | EN 8 |
| Pump Seal | Mechanical Seal (Carbon & Ceramics) |
| Bearing | Anti frictional deep groove ball bearing |
| Application in : • To pump out the mud slurry • Drain out Polluted water & Storm water) • Clearing Industrial water & Sewage • Water from Marine (Docks, Ports and Vessels) • Clearing of muddy Foundation, Trenches and Pits |
|
