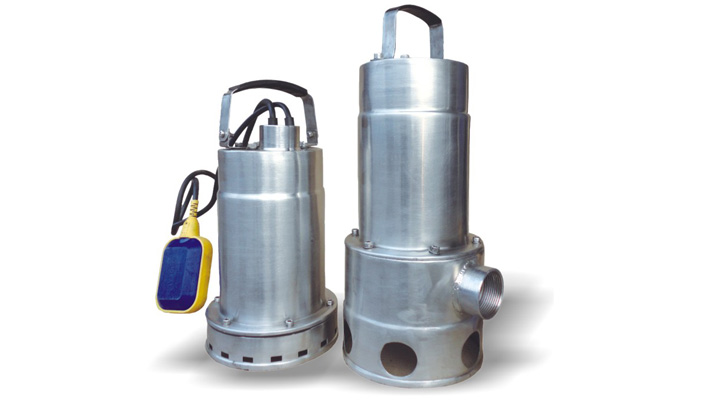

Stainless Steel Sewage Pumps
Applications
Drainage of stainless steel sewage from the building basements, hotel industry, waste water from factories. Drainage of sewage from industrial process factories. Emptying of septic tanks, cesspits and sewage pump stations.Pumping surface and drainage water from garages and sprinkler systems.
Features
A precision manufactured motor is achieved utilizing a laminated sheet steel production process combined with the highest standard of quality control. The drive shaft and rotor assembly is heat - treated and the stator and wiring impregnated with varnish and then heat dried in an industrial oven. This ensures a 100% quality manufactured motor with stable characteristics and a high efficiency.
Standard accessories include: VCT cable with an epoxy resin sealed water - resistant cable base, AC thermal motor protector, dual mechanical seal and lip seal design.
Special Features on Request
Other voltages, Available in 60Hz.
Thermal overload protector
Equipped with Automatic reset motor protector prevents motor from burning due to high temperature / phase failure / voltage drop and lock impeller.
Cable Base
Epoxy resin seal cable base to prevent water intrusion into motor through the cable wire.
P Type Impeller
Semi-open impeller cutting foreign particles, and preventing clog by solid media.
| Specifications | ||
| Power Range | 0.5 & 1 HP | |
| Outlet Size | 52 & 42 mm | |
| Version | 220-240V, 50 Hz,A.C.-1 Phase, | |
| Speed | 2880 rpm | |
| Discharge Range | 43 - 92 lpm. | |
| Head Range | 3-8 mtr. | |
| Max. dia of soft soluble | 5 mm in 0.5 HP 30 mm in 1 HP |
|
| Insulation | Class B | |
| Degree of protection | IP 68 | |
| Material of Construction | ||
| Pump Casing | Stainless Steel | |
| Pump Body | Stainless Steel | |
| Impeller | Cast Iron / Noryl | |
| Shaft | SS-410 | |
| Double Sealing | NBR & Mechanical Seal Carbon V/s Ceramic |
|
| Bracket / Front end Shield | Cast Iron | |
| Rear end Shield | Cast Iron | |
| Stator Body | Stainless Steel | |
|
Application in : • Drainage of sewage ffom the basements, • To clear man hole sewages. • To clear waste water from factories & hotal industry & institutes • Clearing Industrial process waste. • To empty the septic tanks. |
||
