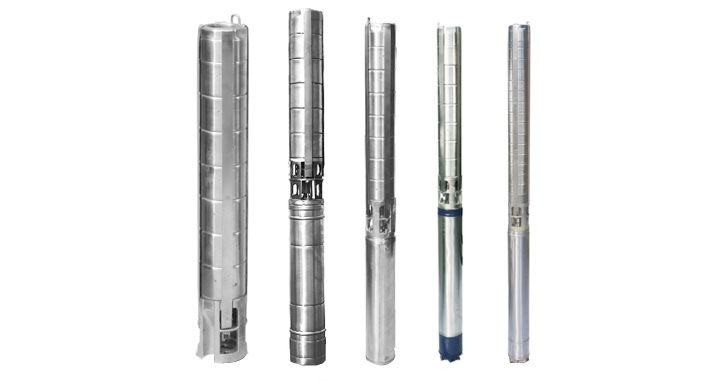

Steel Submersible Pump set OSP - 14 (4 inch) - 50 Hz
OSWAL submersible pumps & motors are well known for its quality, Reliability & excellence for all type of service purpose.OSWAL submersible pumps & motors are manufactured under supervision of highly qualified technical team with a stage wise rigid inspection procedure under TQM concepts.
Application of Bore well submersible pumps are in Hospitals, Water circulation systems, Water supply systems of Government, Irrigation, Farms & Drip & sprinkler irrigation, Gardening, Nurseries, Domestic water supply, Multi-storey Building, Industries & Hotels.
Manufactured by stainless steel fabricated technology, pumps are energy efficient and cost efficient, light weight easy for handling, life longevity, corrosion free. Pump shaft using Duplex steel for high wear resistance. Fully fabricated S.S.-304 pump set is with quality level as per international standard and the same quality is supply in domestic market.
OSWAL Submesible Pumpsets of modular design is suitable for under-water operation for universal fit, all mounting dimensions of pumps and motors are in accordance with NEMA standards.
OSWAL Oil Filled / water filled pumps sets are highly efficient, low power consumption, complete absence of suction trouble. Maintenance free operation due to water lubricating bearings, vibration free & noiseless operation and world class design gives higher discharge & high efficiency. Easily repairable & dismountable.
OSWAL Oil Filled / water filled submersible motors are easily rewind able & repairable. Motor filled with food grade cooling oil. Oil filled motor consist of ball bearing to minimize the frictional losses & to increase the efficiency. Oil used as a coolant and work as lubricant in motor so life of motor is increases due to less wear & tear. The basic function of coolant is to lubricant bearing of rotor, removing heat generated in motor and oil is working as a coolant for smooth operation of pump.
OSWAL BORE WELL SUBMERSIBLE PUMP confirm to IS : 8034.
Mounting dimension of 4" pumps sets are as per NEMA standard
| Specifications |
Single Phase |
Three Phase |
| Power Range |
2 - 3 HP / 1.5 - 2.2 KW |
2 - 7.5 HP / 1.5 - 5.5 KW |
| Version |
220 V, A.C, 50 Hz |
415 V, A.C, 50 Hz |
| Speed |
2880 rpm |
2880 rpm |
| Flow Range |
100 - 300 lpm / 6 - 18 m3/h |
100 - 300 lpm / 6 - 18 m3/h |
| Total Head Range |
13 - 43 meters |
13 - 112 meters |
| Outlet size in inches / mm |
2 inch, 50 mm |
2 inch, 50 mm |
| Degree of Protection |
IP 68 |
IP 68 |
| Direction of Rotation |
CCW |
CCW |
| Maximum Outer Diameter |
98 mm |
98 mm |
| Type of Duty |
S1 (Continuous) |
S1 (Continuous) |
| Maximum cooling flow |
0.15 m/sec. |
0.15 m/sec. |
| Maximum starts per hour |
20 times |
20 times |
| Method of starting |
Capacitor start and run (CSR) - 1 Ph |
DOL (Direct on line) |
| Cable Connection |
Single Phase |
Star |
| Thrust Load |
4000 N |
4000 N |
|
Material of Construction – Pump |
| Part Name |
Material SS Pump |
| Check valve Housing |
S.S. 304 |
| Check Valve |
S.S. 304 |
| Impeller |
S.S. 304 |
| Diffuser |
S.S. 304 |
| Pump Shell / Clump (S.S. Pump) |
S.S. 304 |
| Pump Shaft |
S.S. 431 |
| Suction inter Connector |
S.S. 304 |
| Coupling |
S.S. 304 |
| Material of Construction – Motor |
| Part Name |
Material SS Motor |
| Upper, Lower Housing & Motor Base |
S.S. 304 / CI |
| Stator Shell |
S.S. 304 / J-4 |
| Shaft |
S.S. 410 |
| Thrust Bearing |
Chromium v/s Carbon |
| Mechanical Seal |
Silicon |
