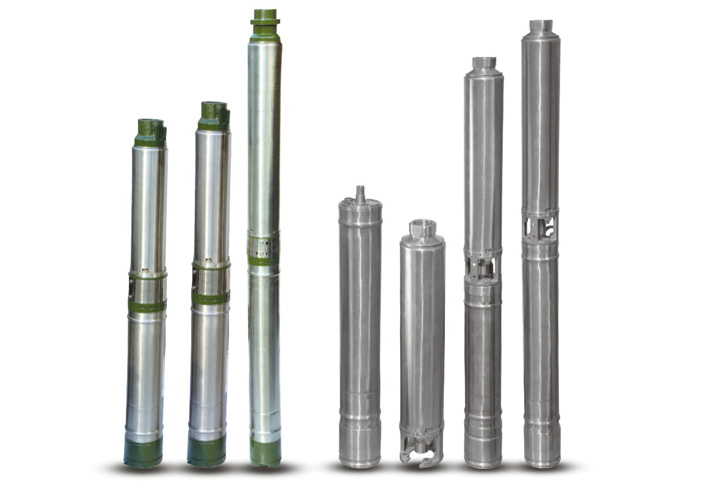

V3 Borewell Submersible Pumpset (Water Filled) 80mm
OSWAL submersible pumps & motors are well known for its quality, Reliability & excellence for all type of service purpose. OSWAL submersible pumps & motors are manufactured under supervision of highly qualified technical team with a stage wise rigid inspection procedure under TQM concepts.
Application of Bore well submersible pumps are in Hospitals, Water circulation systems, Water supply systems of Government, Irrigation, Farms & Drip & sprinkler irrigation, Gardening, Nurseries, Domestic water supply, Multi-storey Building, Industries & Hotels etc.
Salient feature of Borewell submersible pumpsets are Highly efficient & low power consumption, Vibration free, noiseless & Complete absence of suction trouble. OSWAL water filled submersible motors are easily rewind able & repairable. Less Maintenance operation due to water lubricated bearing. Excellent design gives higher discharge & head due to efficient motor, Extreme care has taken for selection of rotor, winding wire, bearings & Stator.
SUBMERSIBLE MOTORS (WATER COOLED)
OSWAL motor Stator wound with Polly wrapped copper wires, which are easily rewind able, Water lubricated & water-cooled. World class designed excellent performance thrust plate are used of S.S. / Carbon that can withstand thrust loads with minimum wear & tear more over it also creates a wedge of water between shoe and the disc so life cycle of thrust plate is increased.
Mounting dimension of 4" pumps sets are as per NEMA / Indian standard.
| Specification | |
| Power Range | 0.5 HP - 1.5 HP |
| Version | 220-240V, 50 Hz, A.C. |
| Method of Starting | Capacitor start and capacitor run (CSCR) in water filled Capacitor start and run (CSR) in oil filled |
| Speed | 2880 rpm. |
| Discharge Range | 25 - 80 lpm |
| Head Range | 12 - 83 mtr. |
| Outlet size | 25 & 32 mm |
| Degree of Protection | IP 68 |
| Maximum Outer diameter | 76 mm. |
| Duty | S1 (Continuous) |
| Mounting Standard | NEMA / Key way |
| Material of Construction Pumps | |
| NRV Housing | Cast Iron (Regular) Stainless Steel (Platinum) |
| Impeller | Nory* |
| Diffuser | Norly* |
| Pump Jacket | Stainless Steel |
| Pump Shaft | SS 410 |
| Suction inter Connector | Cast Iron (Regular) Stainless Steel (Platinum) |
| Coupling | SS 410 |
| Material of Construction Motor | |
| Upper - Lower Housing & Motor Base | Cast Iron (Regular) / Stainless Steel Jacket (Platinum) |
| Stator Body | Stainless Steel |
| Shaft | SS 410 |
| Bearing | Leaded Bronze in water filled Anti frictional deep groove ball bearing in oil filled |
| Thrust Bearing Set | Carbon V/s SS in water filled |
| Application in : • Bore well domestic water supply • Rural and munucipal water supply • Irrigation • water supply in commercial estabilishments • Small farms, gardening & nurseries. |
|
