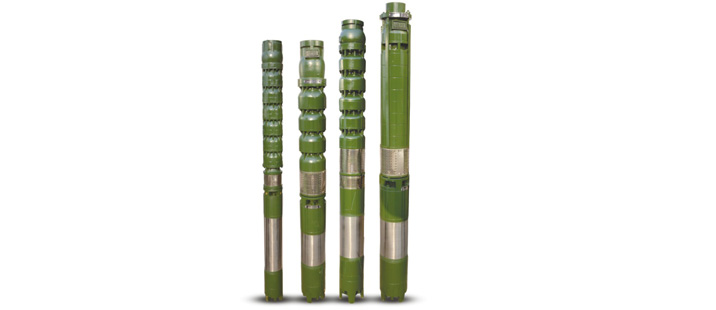

V5 Water filled Borewell Submersible Pump Set

V5 Water filled Borewell Submersible Pump Set

OSWAL submersible pumps & motors are well known for its quality, Reliability & excellence for all type of service purpose. OSWAL submersible pumps & motors are manufactured under supervision of highly qualified technical team with a stage wise rigid inspection procedure under TQM concepts.
Application of Bore well submersible pumps are in Hospitals, Water circulation systems, Water supply systems of Government, Irrigation, Farms & Drip & sprinkler irrigation, Gardening, Nurseries, Domestic water supply, Multi-storey Building, Industries & Hotels etc.

Salient feature of Borewell submersible pump sets are Highly efficient & low power consumption, Vibration free, noiseless & Complete absence of suction trouble. OSWAL water filled submersible motors are easily rewind able & repairable. Less Maintenance operation due to water lubricated bearing. Excellent design gives higher discharge & head due to efficient motor, Extreme care has taken for selection of rotor, winding wire, bearings & Stator.
OSWAL Stator wound with synthetic copper wires, which are easily rewind able, Water lubricated & water-cooled. World class designed excellent performance thrust plate are used of S.S. / Carbon that can withstand thrust loads with minimum wear & tear more over it also creates a wedge of water between shoe and the disc so life cycle of thrust plate is increased. Dynamically balanced rotor gives best efficiency and increase like of bush and motor.
OSWAL Water Filled water Cooled Submersible Motors confirm to IS : 9283 and Pump set confirm to IS : 8034

Specifications V5
Powar Range 3 — 7.5 HP in 1 Phase
3 — 12.5 HP in 3 Phase
Version 220-240V, 50 Hz, A.C.— 1 Phase
350-440V — 3 phase
Method of starting Capacitor start and capacitor run (CSCR) in 1 Phase DOL/Start in 3 Phase
Speed 2880 rpm
Discharge Range 350 — 700 lpm
Head Range 13 — 109 mtr
Outlet size 50 & 75 mm
Degree of Protection IP 68
Max Outer Diameter 121 mm
Duty S1 (Continuous)
Material of Construction Pump
NRV Housing Cast Iran
Impeller Stainless Steel
Diffuser Cast Iran
Pump Shaft SS 410
Suction inter Connector Cast Iran
Coupling SS 410
Material of Construction - Motor
Upper & Lower Housing Cast Iran
Stator Body Stainless Steel
Shaft SS 410
Bearing Leaded Bronze
Thrust Bearing Set Carbon V/s SS
Application in :

• Water extraction from boreholes
• large irrigation
• Agriculture & institutes water supply
• Civil & Industrial water supply
• Rural water supply
