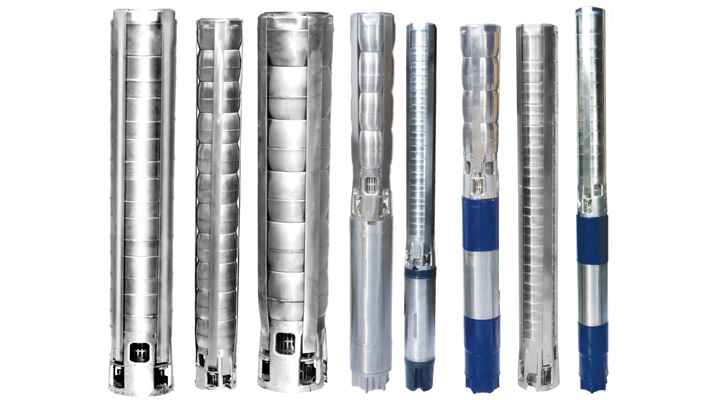

V6 Stainless Steel Borewell Submersible Pump Set (Water Filled)

V6 Stainless Steel Borewell Submersible Pump Set (Water Filled)

OSWAL submersible pumps & motors are well known for its quality, Reliability & excellent for all type of service purpose. OSWAL submersible pumps & motors are manufactured under supervision of highly qualified technical team with a stage wise rigid inspection procedure under TQM concepts. OSWAL team are well known for their excellent services after sales.

The company has also obtained BIS certificate for ISI mark and through continuous process improvements & streamlining the quality system at par with the international standards has now acquired ISO:9001:2000 certifications.
Application of Bore well submersible pumps are Hospitals, Water circulation systems, Water supply systems of Government, Irrigation, Farms, Drip & sprinkler irrigation, Gardening, Nurseries, Domestic water supply, Multi-storey Building & Industrial water supply systems & Hotels.
OSWAL has successfully developed its energy efficient and cost efficient pump manufacturing of fully fabricated S.S.-304 with a quality level as per international standard. The company has offering quality product at a lowest price .the company has exporting pump sets to developed countries and the same quality is supply in domestic market.
OSWAL Submesible Pumpsets of modular design suitable for under-water operation for universal fit, all mounting dimensions of pumps and motors are in accordance with NEMA standards. OSWAL submersible pumpset are of completely S.S.-304 construction with fabricated technology, light weight easy for handling and life longevity.
We offers a complete range of pumps and motors with as a standard are made completely as stainless steel - 304. This provides for good wear resistance and a reduced risk of corrosion when pumping ordinary cold water with a minor content of chloride. These pumps have low weight facilitating the handling of pumps and resulting in low equipment costs and
OSWAL WATER FILLED Pump set confirm to IS : 8034.*

Specifications V6
Series OSP 9,12,17,30,40,46 & 60
OHF 65,90,110,135 & 160
ORF 55,65,90 & 110
Power Range 3 - 7.5 HP
In 1 Phase 3 — 50 HP in 3 Phase
Version 220-240V, A.C
50 Hz, - 1 Phase
350-440v — 3 phase
Method of stariing A C Capacitor start
and Capacitor run (CSCR) in 1 Phase, DOL/Star Delta in 3 Phase
Speed 2880 rpm
Discharge Range lpm 150-500
Head Ran e in meters 15-400
Outlet size 50, 65, 75 & 100 mm
Degree of Protection IP 68
Max outer diameter 147 mm
Duty S1
Standard as per NEMA
Material of Construction
s
NRV Hauslng Stainless Steel
Valve Sheet NBR + 55-304
Impeller Stainless Steel
Diffuser Stainless Steel
Pump Shaft Stainless Steel
Suction inter Connector Stainless Steel
Coupling Stainless Steel
Application in :

• Water extraction from boreholes for large irrigation
• AC and eaiar enargy compatible
• Agriculture & institutes water supply
• Civll & Industrial water supply
• Rural water supply
