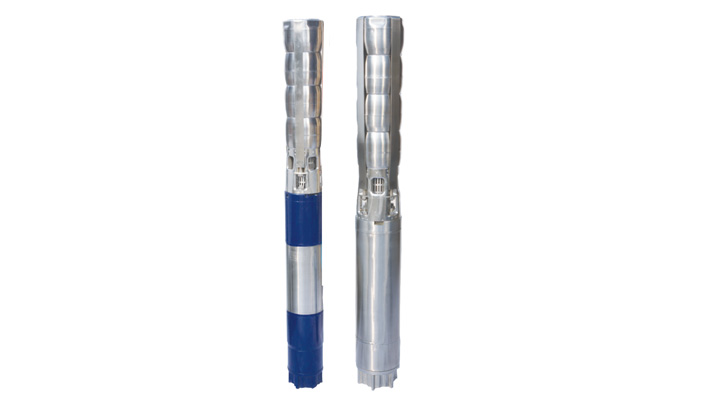

V7 Stainless Steel Borewell Submersible Pump Set (Water Filled)
OSWAL submersible pumps & motors are well known for its quality, reliability & excellent for all type of service purpose. OSWAL submersible pumps & motors are manufactured under supervision of highly qualified technical team with a stage wise rigid inspection procedure under TQM concepts. OSWAL team are well known for their excellent services after sales.
The company has also obtained BIS certificate for ISI mark and through continuous process improvements & streamlining the quality system at par with the international standards has now acquired ISO:9001:2000 certifications.
Application of Bore well submersible pumps are Hospitals, Water circulation systems, Water supply systems of Government, Irrigation, Farms, Drip & sprinkler irrigation, Gardening, Nurseries, Domestic water supply, Multi-storey Building & Industrial water supply systems & Hotels.
OSWAL has successfully developed its energy efficient and cost efficient pump manufacturing of fully fabricated S.S.-304 with a quality level as per international standard. The company has offering quality product at a lowest price .the company has exporting pump sets to developed countries and the same quality is supply in domestic market.
OSWAL Submesible Pumpsets of modular design suitable for under-water operation for universal fit, all mounting dimensions of pumps and motors are in accordance with NEMA standards. OSWAL submersible pumpset are of completely S.S.-304 construction with fabricated technology, light weight easy for handling, life longevity, pump shaft using Duplex steel for high wear resistance.
We offers a complete range of pumps and motors with as a standard are made completely as stainless steel - 304. This provides for good wear resistance and a reduced risk of corrosion when pumping ordinary cold water with a minor content of chloride. These pumps have low weight facilitating the handling of pumps and resulting in low equipment costs and
OSWAL WATER FILLED AND WATER COOLED SUBMERSIBLE MOTORS confirm to IS : 9283.& Pump set confirm to IS : 8034.*
| Specifications | V7 | ||||||
| Series | OSP 70 & 90 | ||||||
| Power Range | 3.0 -5O HP in 3 phase |
||||||
| Version | 350-440V - A.C 50 Hz —3 Phase |
||||||
| Method of stariing | DOL/Star Delta in 3 Phase | ||||||
| Speed | 2880 rpm | ||||||
| Discharge Range lpm | 1100-1400 | ||||||
| Head Ran e in meters | 10-100 | ||||||
| Outlet size | 100 mm | ||||||
| Degree of Protection | IP 68 | ||||||
| Max outer diameter | 157 mm | ||||||
| Duty | S1 | ||||||
| Standard as per | NEMA | ||||||
| Material of Construction | |||||||
| NRV Hauslng | Stainless Steel |
| Valve Sheet | NBR + 55-304 |
| Impeller | Stainless Steel |
| Diffuser | Stainless Steel |
| Pump Shaft | Stainless Steel |
| Suction inter Connector | Stainless Steel |
| Coupling | Stainless Steel |
| Application in : • Water extraction from boreholes for large irrigation • AC and eaiar enargy compatible • Agriculture & institutes water supply • Civll & Industrial water supply • Rural water supply |
|
