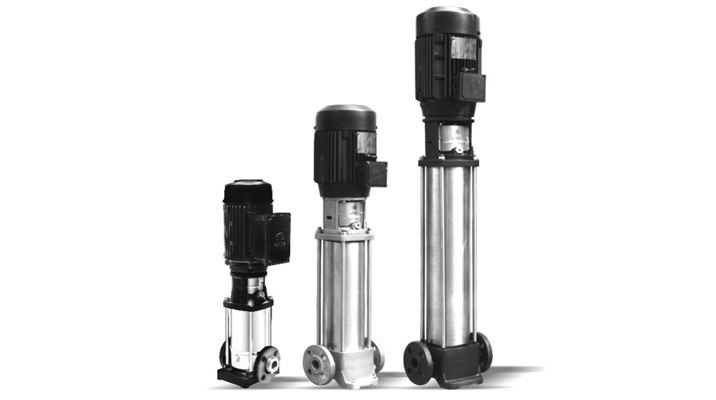

Vertical Multistage Centrifugal Pumps
OSWAL Vertical Multistage Inline Pumps are non-self-priming, suitable for a variety of applications from pumping of potable water & chemicals, which comes with various pump sizes and various numbers of stages to provide the flow and pressure required. Developed by state of art in house designing, the product stands apart for its performance. The in-line design enables the pump to be installed in a horizontal one-pipe system where the suction and discharge ports are in the same horizontal plane and have the same pipe dimension. The design provides more compact pump design and pipe work.
OSWAL Inline pumps comes with various pump sizes and various numbers of stages to provide the flow and pressure required. They are suitable for variety of applications from pumping of potable water to pumping of chemicals. The pumps are therefore used in a wide diversity of pumping systems where the performance and material of the pump meet the specific demand. The pump unit consists of optimized hydraulics, various types of connections, an outer sleeve, a top and various other parts. The pumps are available in various material versions according to the pumped liquid.
Specifications : |
|
|---|---|
| OCR-1,2,3,5 & 10 Series | |
| Power range | 1 — 3 HP in 1 Phase 1 - 20 HP in 3 Phase |
| Version | 220 - 240 V in 1 Phase 380 — 415 V in 3 Phase 50 Hz, AC |
| Speed | 2880 RPM |
| Discharge Range | 0.1 - 18 m3/H |
| Bar pressure range | 0.6 - 22 Kg/cm2 |
| Electric motor insulation | Class F |
| Degree of Protection | IP 54 |
| Temperature range | -30° to 120° C |
Material of Construction : |
|
|---|---|
| Pump Head | CI-FG-260 / Stainless Steel |
| Base | Cl-FG-260 / Stainless Steel |
| Shaft | SS - 431 / Stainless Steal |
| Impeller | Stainless Steel |
| Bowl | Stainless Steel |
| Outer Sleeve | Stainless Steel |
| O-ring for outer Sleeva | EPDM |
| Necking | PTFE |
| Shaft Seal | Cartridge Type TC V/s Carbon |
| Bearing Rings | Tungsten Carbide |
| Application in : • Commercial Reverse Osmosis system & De Mineralizing systems. • Boiler feed and water circulation. • Pressure boosting In mains in high rise buildings & hotels. • Distribution trom waterworks to Ultra Filtration ancl transfer back. • Constant Pressure boosting system in washing, cleaning & Fire fighting systems |
|
